Construction Features

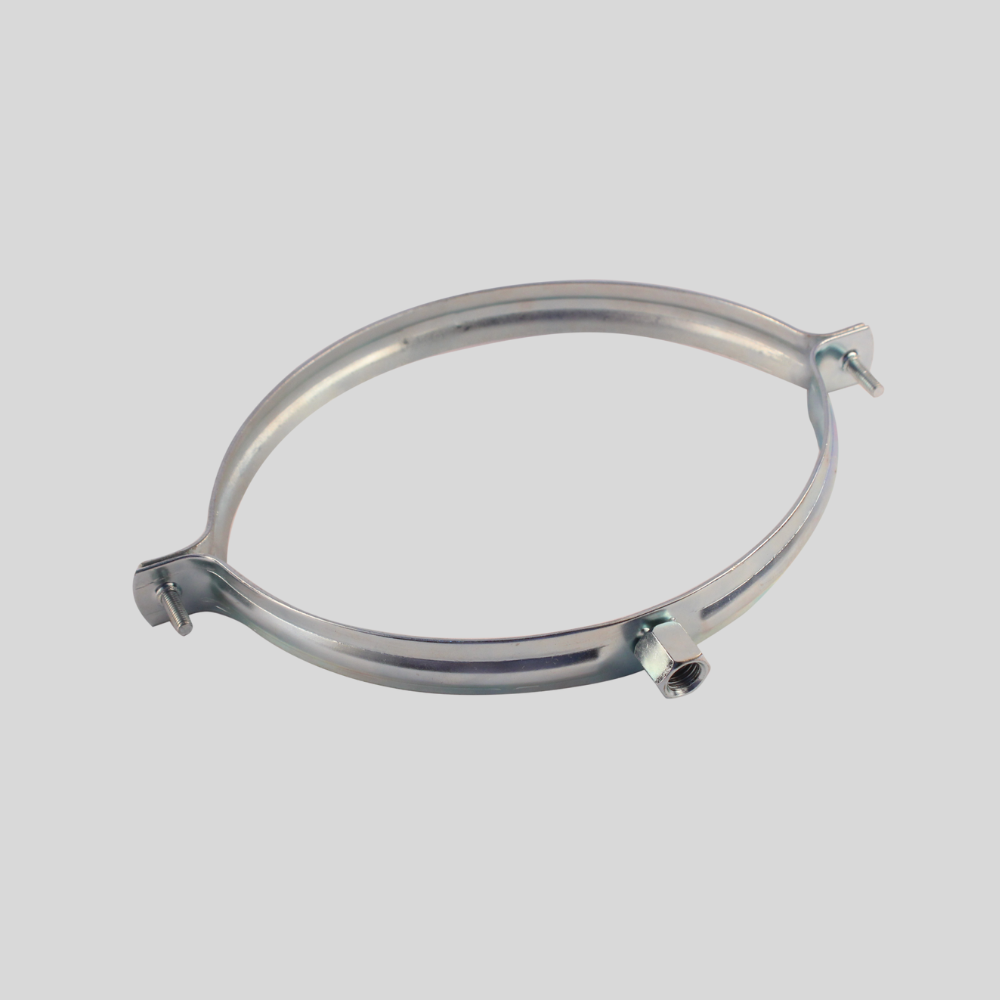

• The Purus Hi-Tech Split Clamp has strengthened lock bolts for high load capacity.
• Can be used for both horizontal and vertical installations.
• Temperature range: – 20C to 110C.
• Lock bolts with the combination of the cross-recessed head.
• Grooved construction for added strength.

Technical Data

• Welded Nut M8/M10 with the option of M10/M12.
• Safe and break load as per chart.
• M6 Side Nuts can be provided on request.
• Electrogalvanized as per ASTM B 633 Standards.
• Hot-dipped galvanized and stainless-steel options are provided on request.
